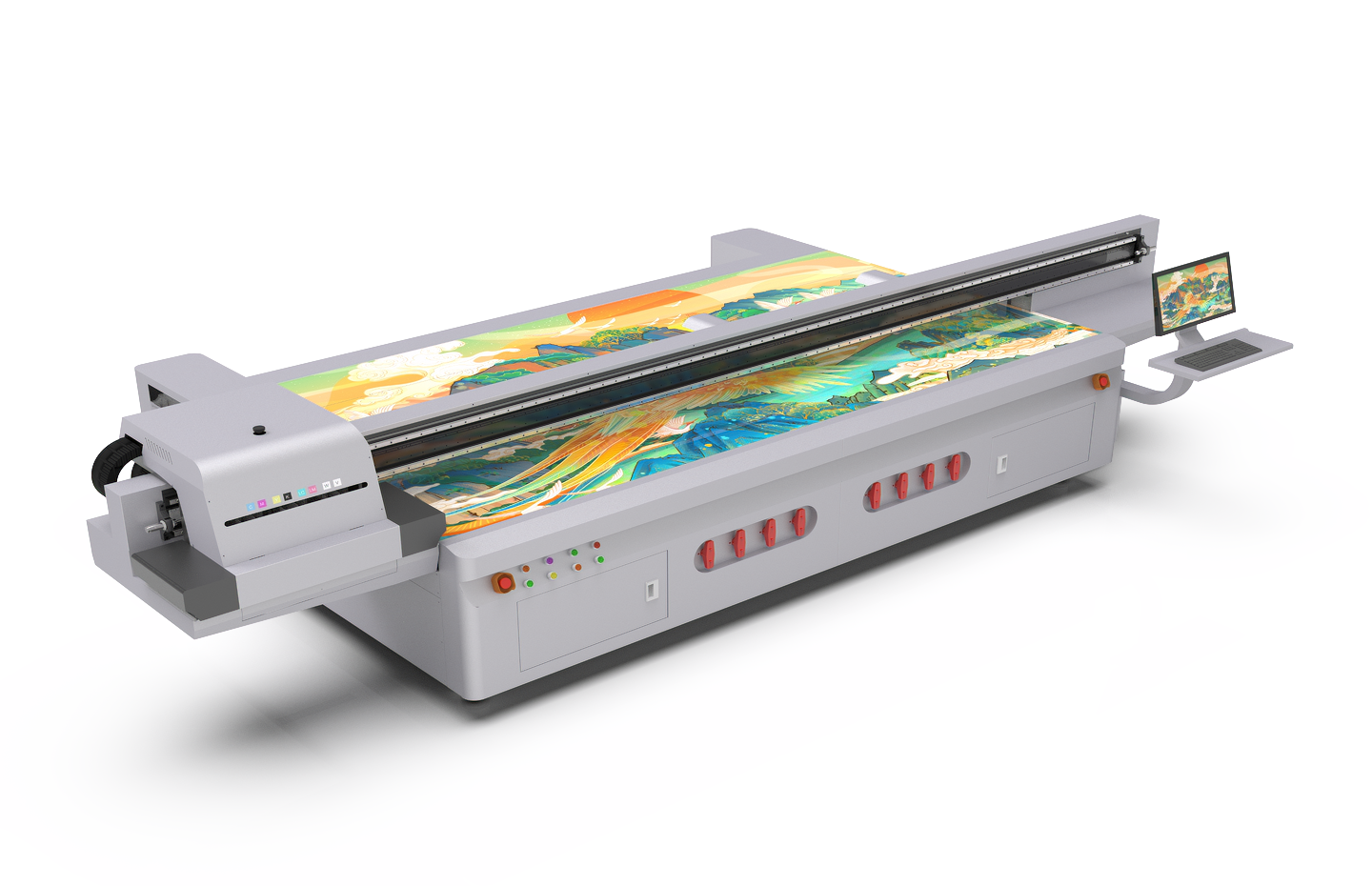

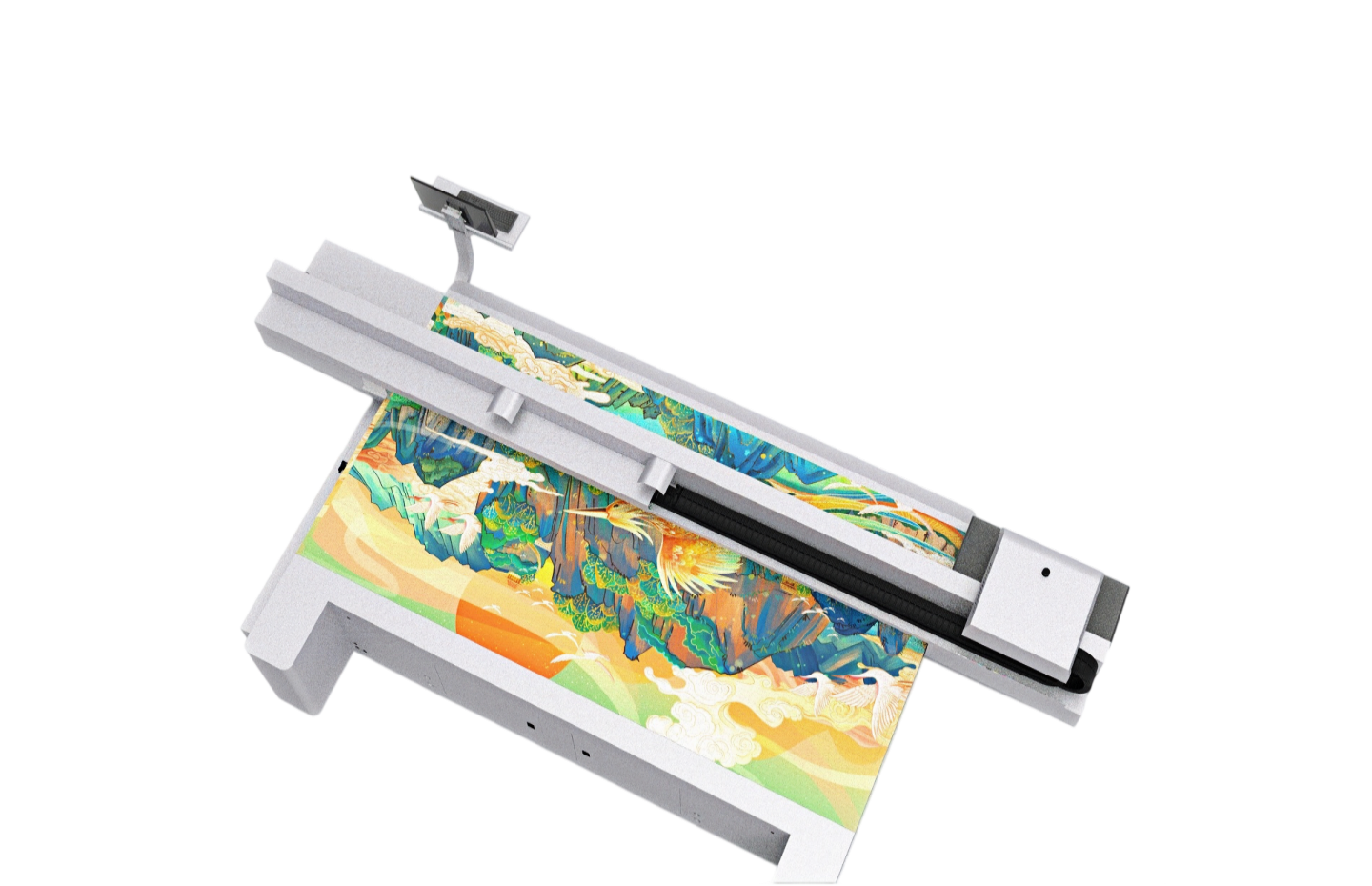

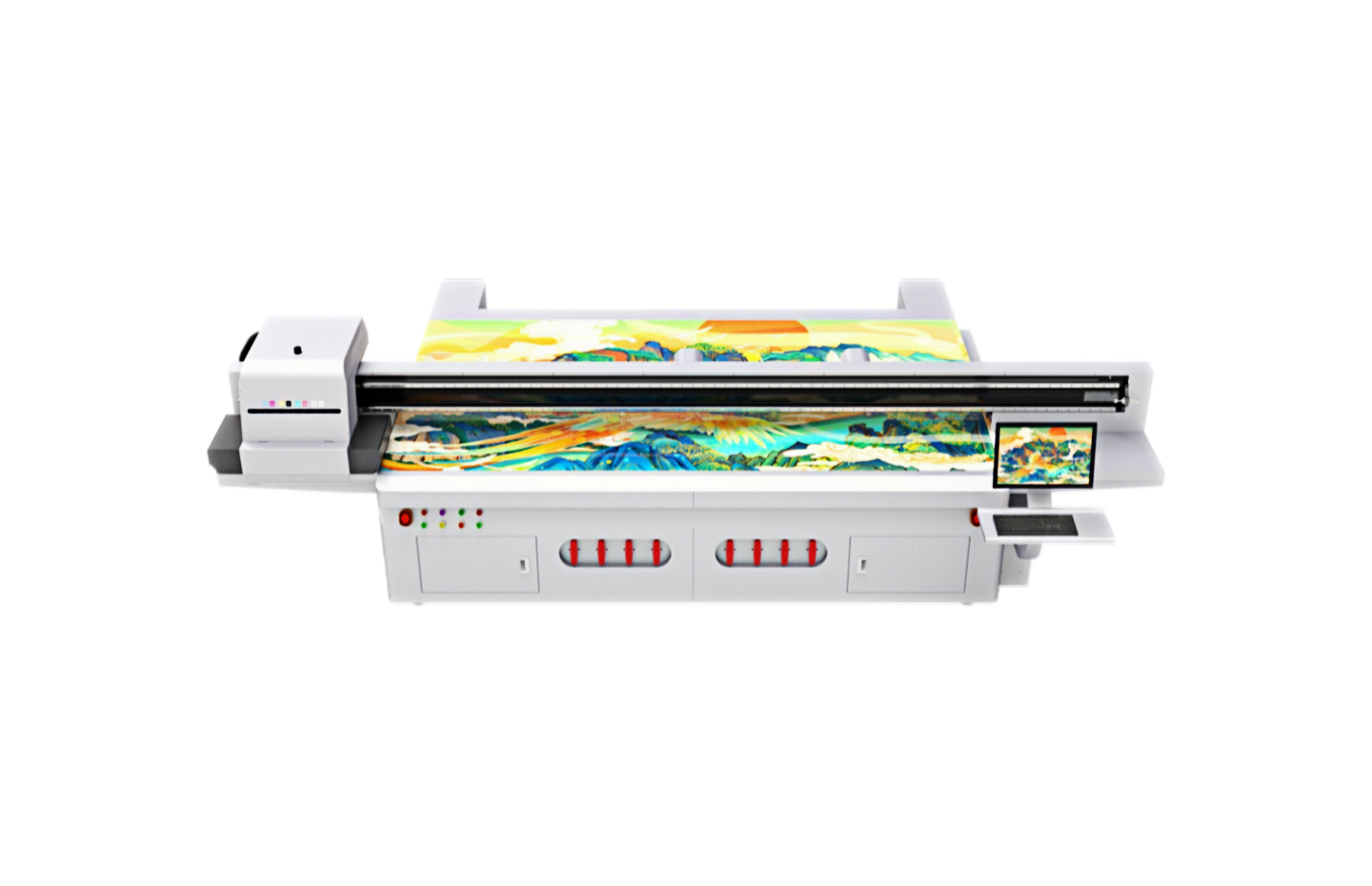

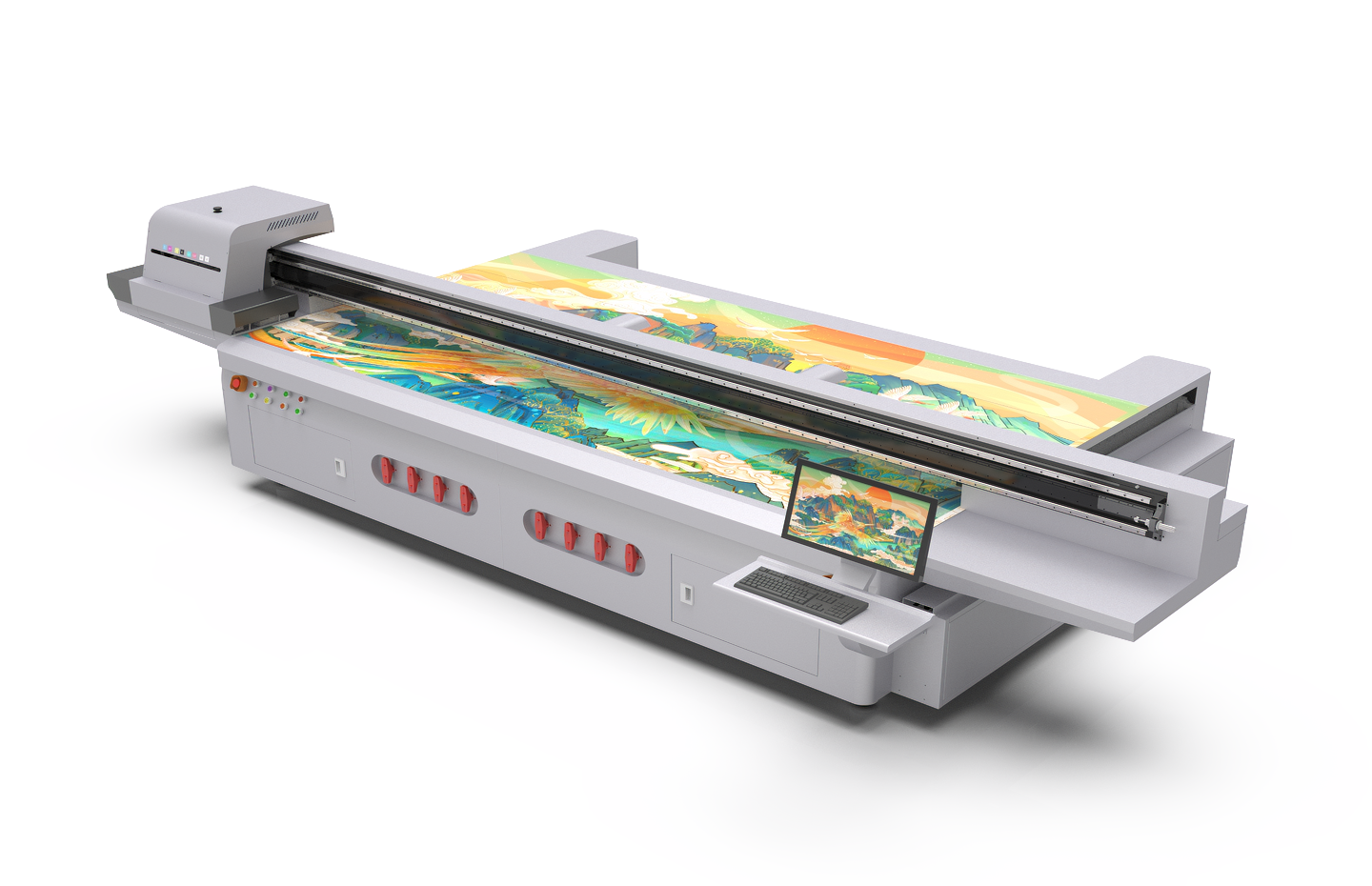

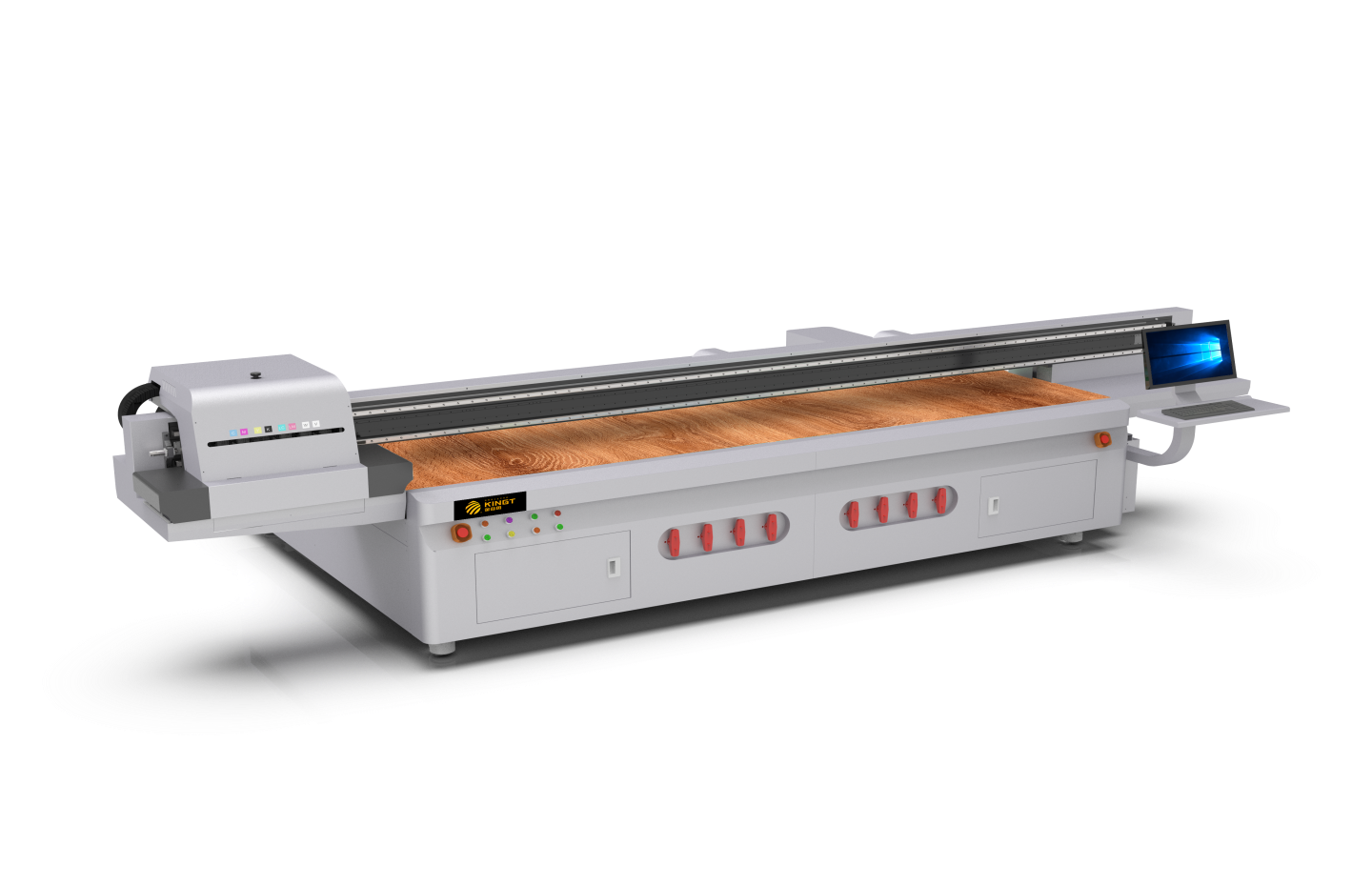

The KGT-3325 UV Digital Flatbed Printer is an industrial-grade, large-format UV printing solution engineered for businesses requiring high-precision output, robust continuous operation, and wide-format customization. Designed specifically for commercial print houses, industrial processors, interior decoration manufacturers, and signage producers, the KGT-3325 empowers companies to expand their production limits across diverse media substrates.
Equipped with Ricoh GEN6 printheads, integrated linear motor drive technology, and an expansive 3,300 * 2,500 mm worktable, this digital flatbed printer delivers outstanding print consistency for applications ranging from large-sized panels and architectural glass to custom decor and promotional displays.
Drive Business Growth with KGT-3325 Large Format UV Printing
l Expand Substrate Capabilities and Market Opportunities
Modern market demand requires versatile printing across an array of rigid and semi-rigid materials. Traditional setups often constrain growth due to bed size limits or slow turnaround times. The KGT-3325 removes these bottlenecks with its ultra-large 3.3m * 2.5m platform, opening new revenue streams in:
Large-Format Advertising & Signage: Produce high-impact commercial displays, outdoor billboard panels, and custom hoardings.
Interior & Architectural Decoration: Direct-to-substrate printing on background feature walls, wood panels, and ceiling tiles.
Glass & Specialty Craft Printing: Deliver durable, high-precision graphics on architectural glass, acrylics, and personalized crafts.
l Deliver High Value-Added Surface Finishes
Clients increasingly seek tactile 3D effects, spot varnish accents, and vibrant color opacity. Supporting a full configuration of C, M, Y, K, Lc, Lm, White, and Varnish (W/V), the KGT-3325 allows simultaneous printing of white ink, color, and varnish in a single pass for premium visual differentiation.
l Maximize Industrial Production Efficiency
By integrating an X-axis linear motor, metal grating encoder, and 4 *1.5kW vacuum suction zones, the system maintains ultra-stable media hold-down and smooth carriage movement, ensuring dependable 24/7 industrial performance.
Key Technical Advantages
l Ricoh GEN6 Printhead System (5pL Minimum Droplet)
Utilizing 3 to 8 optional Ricoh GEN6 printheads with a minimum ink droplet size of 5pL and a 50kHz maximum firing frequency, the machine produces sharp text, fine gradients, and accurate variable-dot imagery.
l Advanced Motion & Positioning Architecture
X-Axis Linear Motor Drive: Paired with a precision metal grating encoder for silent, fast, and highly accurate carriage motion.
Independent Dual Y-Axis Drive: Servo-driven motion control on both X and Y axes ensures exact physical alignment across the entire platform.
l High Drop & Multi-Layer Feature Support
Features specialized high-drop printing modes for uneven or contoured surfaces, paired with intelligent feathering algorithms and white ink circulation stirring functions to eliminate nozzle clogging and banding.
l Water-Cooled LED Curing & Vacuum Bed
Equipped with dual-lamp water-cooled LED UV curing for heat-sensitive media, supported by a heavy-duty suction bed powered by 4 independent 1.5kW fans.
| Model | KGT-3325 |
| Printhead | 3~8 pcs Ricoh GEN5S printheads (standard 3pcs) |
| Function configuration | Gantry type: 300dpi/600dpi Carriage type: 1200dpi |
| Platform size | 2,500mm*1,300mm(8.2*4.26 feet) |
| Printing resolution | 635*900dpi/635*1,200dpi |
| Printing technology | Variable ink dot printing |
| Ink supply system | Automatic ink supply system |
| Negative pressure system | Negative pressure automatic adjustment system |
| RIP software | ColorGATE (from Germany) |
| Operating system | Windows 10 |
| X/Y axis motor | X/Y -axis: Linear motor |
| Platform | Suction platform |
| Curing system | Dual UV LED lamps, water cooling system |
| Liftmode | Carriage lift + automatic height measurement |
| Motion mode | Dual Y-axis motor independent drive |
| Ink type | Eco-friendly UV soft inks / hard inks / neutral inks (VOC-free) |
| Ink color | C/M/Y/K/Lc/Lm/W |
| Ink capacity | 1,500 ML |
| Platformsize | 2,650mm*1,400mm |
| Dimensions | 4,350mm*2,100mm*1,350mm (Include detachable computer stand) |
| Environmental requirements | Temperature: 25-30°C, Relative humidity: 40%-60% |
| Power requirements | Input voltage: 220V, 50/60Hz |
| Maximum power | 7,000W (including vacuum power 3,000W) |
| Net weight | 1,500kg |
Why Choose KINGT as Your UV Flatbed Printer Manufacturer
1.Professional Industrial UV Printer Manufacturer Since 2009
KINGT is a professional manufacturer specializing in industrial UV printing equipment. Since 2009, we have integrated R&D, manufacturing, sales, and global service to deliver reliable UV printing solutions for distributors, manufacturers, and printing businesses worldwide.
2.Large-Scale Manufacturing Capability
With a 220,000 m² production base, 400+ employees, and 100+ patents & copyrights—plus an R&D team comprising 25% of our workforce, KINGT has the manufacturing capacity to support both standard equipment production and customized project requirements.
3.Built for Industrial Production
Our UV flatbed printers are engineered for continuous industrial operation, delivering stable performance, high productivity, and consistent print quality for demanding manufacturing environments.
4.Global Supply & Industry Experience
With a strong global footprint, KINGT provides high-performance industrial UV printing equipment to customers in more than 80 countries worldwide.We understand the needs of distributors, OEM partners, manufacturers, and commercial printing companies.
5.Certified Manufacturing Quality
Our manufacturing processes comply with ISO 9001, ISO 14001, and ISO 45001 standards. Every machine is thoroughly inspected and tested before shipment to ensure reliable operation and long-term performance.
6.Your Long-Term Manufacturing Partner
Beyond supplying equipment, KINGT is committed to building long-term partnerships through customized solutions, professional technical support, and continuous product innovation—helping customers grow their businesses with confidence.
Global Service & Support
1.Installation & Training
Our engineers provide installation guidance and operator training to ensure your equipment is commissioned efficiently and your team is ready for production.
2.Remote & On-Site Technical Support
Technical assistance is available via WhatsApp, Email, and Video. When required, our engineers can travel to your facility to provide on-site installation, maintenance, troubleshooting, and technical support.
3.Fast Response Service
Our after-sales team responds quickly to technical issues, helping customers minimize downtime and restore production as efficiently as possible.
4.Lifecycle Technical Support
From equipment operation and application optimization to maintenance consultation, we provide continuous technical support throughout your machine's lifecycle.
5.12-Month Warranty
Every KINGT UV flatbed printer includes a 12-month warranty (excluding Printhead and ink supply system, consumable parts are not covered), backed by long-term technical support from our experienced service team.
FAQ
1.How does the KGT-3325 maintain high precision across a large 3.3m*2.5m platform?
The system utilizes an X-axis linear motor paired with a precision metal grating encoder, combined with an independent dual Y-axis motor drive system. This ensures consistent ink dot placement accuracy across every square centimeter of the large bed.
2.What media thickness and surface variations can it accommodate?
Featuring automatic height detection and an adaptive carriage lifting system, the printer supports high-drop printing modes, preventing overspray or image degradation even on non-flat or textured substrates.
3.How does the machine secure heavy or lightweight rigid boards during printing?
The vacuum platform is powered by four 1.5kW suction fans (total 6kW vacuum power), providing strong, zoned air suction to hold down warped or heavy materials securely during high-speed passes.
4.What color matching software is included with the printer?
Every KGT-3325 unit comes bundled with professional German ColorGATE RIP software, providing precise color management, spot color channel creation, and international brand-color matching.
5.What are the facility power and installation requirements?
The printer runs on single-phase 220V (50/60Hz) power with a total maximum consumption of 10,000W. It requires a operating footprint accommodating its 4,456*4,430*1,320 mm dimensions, along with standard environmental control (18–26°C, 45%–60% humidity).
