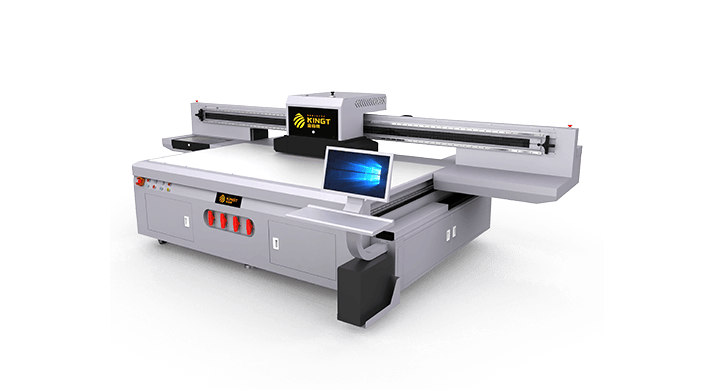

The KGT-2513-Hi is an industrial UV flatbed printer designed for businesses that require high-resolution printing on advertising signs, customized products, and industrial panels. Equipped with a FUJIFILM SF600 printhead, a 2,500 × 1,300 mm maximum printing size, and UV LED curing, it provides a printing platform for manufacturers and printing companies handling a range of flat and customized products.
For B2B buyers, the KGT-2513-Hi combines high-resolution printing, high productivity, and adjustable printing height in one equipment configuration. Its technical specifications allow purchasers to evaluate the machine against production capacity, image quality requirements, substrate dimensions, and factory installation conditions.
FUJIFILM SF600 Printhead for High-Resolution Printing
The KGT-2513-Hi uses an industrial-level FUJIFILM SF600 printhead with a 4PL minimum ink drop and 1 channel per head. Its printing resolution is 720 × 1,200 dpi or 720 × 1,800 dpi.
The printhead configuration and MEMS silicon-based printing technology provide a defined printing system for businesses evaluating an industrial UV flatbed printer. The KGT-2513-Hi also features built-in printhead heating and internal ink circulation.
Production Speed for Factory Planning
The KGT-2513-Hi provides the following printing speed configurations:
Resolution | Pass Mode | Production Mode | High Quality Mode |
720 × 1,200 dpi | 4 PASS | 30 Sqm/h | 18 Sqm/h |
720 × 1,800 dpi | 6 PASS | 25 Sqm/h | 13 Sqm/h |
These are the listed printing speeds for the different resolution and pass mode configurations. For printing companies and manufacturers, the figures provide a basis for comparing production capacity and selecting a suitable printing configuration.
Actual output depends on the selected resolution, pass mode, material, and production workflow.
Supports a printing height of 0–150 mm
The KGT-2513-Hi supports a printing height of 0–150 mm, with the standard printing height customizable according to the product information.
For businesses evaluating a UV flatbed printer for acrylic, phone cases, or promotional products, the printing height is an important factor when reviewing the thickness and dimensions of their intended products. Buyers should confirm the suitable printing height and substrate compatibility with KINGT before purchase.
Linear Motor Drive and 1 μm Encoder Strips
The KGT-2513-Hi uses X-axis and Y-axis linear motors. Its X-axis is equipped with a metal encoder strip with 1 μm resolution, while the Y-axis uses a magnetic encoder strip with 1 μm resolution.
The motion system is part of the machine's mechanical configuration for flatbed printing. For factory buyers, these specifications provide useful information when comparing equipment motion systems, installation requirements, and production workflow.
Independent Ink Circulation and Temperature Control
The KGT-2513-Hi features an independent ink circulation control system, with internal ink circulation in the printhead and built-in heating. Its ink type is eco-friendly UV ink (VOC-free), and the ink capacity is 1,500 ml.
The ink system is relevant to buyers reviewing ink management, printing consistency requirements, and operating procedures. The KGT-2513-Hi provides a defined configuration for businesses evaluating industrial UV flatbed printing equipment.
Printing Applications for Advertising, Panels, and Customized Products
The KGT-2513-Hi is specified for advertising signs, customized products, and industrial applications. The product information also shows badge, anime card, advertising sign, and panel printing examples.
For businesses considering an advertising printing machine or UV flatbed printer for promotional products, the machine's large printing size, high-resolution printing configuration, and adjustable printing height provide a basis for evaluating its suitability. Buyers interested in a UV flatbed printer for wood or a UV flatbed printer for glass should confirm the compatibility of their specific substrates with KINGT before purchase.
Technical Configuration for Equipment Buyers
The KGT-2513-Hi uses ColorGATE RIP software from Germany and supports TIFF, BMP, PDF, EPS, JPEG, and other file formats. Its ink configuration is C / M / Y / K / Lc / Lm / W.
For businesses comparing UV flatbed printer price, printing capacity, and equipment configuration, these specifications provide a basis for evaluating the machine against their production requirements.
FUJlFlLM SF600 Printhead
FUJlFlLM SF600 printhead, 4PL minimum ink drop, 1 channel / head
Ink Circuit Constant Temperature Control System
The ink system is heated by a constant temperature water bath (Up to 80℃), and the temperature can be controlled within ±0.2℃
Independent Ink Circulatory System
White and color ink adopt 4-channel independent intelligent negative pressure control system to ensure the stability of circulating ink supply system
High-precision X-axis Linear Motor
X-axis linear motor with metal encoder strip (1μm); Ensure accurate mechanical transmission and durability
Dual Y-axis Linear Motors
Dual Y-axis linear motors with metal encoder strip (1μm), provide optimal control of Y-axis movement
| Model | KGT-2513Hi |
| Printhead | FUJIFILM SF600 printhead |
| Platform size | 2,500mm * 1,300mm (8.2 * 4.26 feet) |
| Printing resolution | 720 * 1,200dpi/720 * 1,800dpi |
| Ink color | CMYK+W+V/CMYKLcLm+W+V/CMYKLcLmLk+W+V |
| Printhead technology | MEMS silicon-based technology, printhead internal ink circulation, built-in heating |
| Printing height | 0-150mm standard (customizable) |
| X/Y axis system | Magnetic levitation linear motor |
| X/Y axis motor | X-axis: Linear motor, metal encoder strip (lμm) Y-axis: Linear motor, magnetic encoder strip (lμm ) |
| Lift mode | Intelligent carriage lift; electronic automatic/manual intelligent sensing detection height measurement |
| Media | Glass, wood, acrylic, MDF, metal, advertising signage, leather, ceramic, plastic, etc. |
| File format | TIFF (RGB&CMYK), BMP,PDF, EPS, JPEG, etc. |
| Ink capacity | 1,500ml |
| Ink type | Eco-friendly UV ink (VOC-free) |
| RIP software | ColorGATE (from Germany) |
| Power requirements | AC220V (±10%) 50/60HZ; Max power: 9,000W (including vacuum power 4,400W) |
| Operating system | Windows 64-bit |
| Environmental requirements | Temperature: 18-30°C (64°F~86°F). Relative humidity:45%-60% (non-condensing) |
| Dimensions | 4,670mm * 2,250mm * 1,450mm (Include detachable computer stand) |
| Net weight | 1,650KG |
Why Choose KINGT as Your UV Flatbed Printer Manufacturer
1.Professional Industrial UV Printer Manufacturer Since 2009
KINGT is a professional manufacturer specializing in industrial UV printing equipment. Since 2009, we have integrated R&D, manufacturing, sales, and global service to deliver reliable UV printing solutions for distributors, manufacturers, and printing businesses worldwide.
2.Large-Scale Manufacturing Capability
With a 220,000 m² production base, 400+ employees, and 100+ patents & copyrights—plus an R&D team comprising 25% of our workforce, KINGT has the manufacturing capacity to support both standard equipment production and customized project requirements.
3.Built for Industrial Production
Our UV flatbed printers are engineered for continuous industrial operation, delivering stable performance, high productivity, and consistent print quality for demanding manufacturing environments.
4.Global Supply & Industry Experience
With a strong global footprint, KINGT provides high-performance industrial UV printing equipment to customers in more than 80 countries worldwide.We understand the needs of distributors, OEM partners, manufacturers, and commercial printing companies.
5.Certified Manufacturing Quality
Our manufacturing processes comply with ISO 9001, ISO 14001, and ISO 45001 standards. Every machine is thoroughly inspected and tested before shipment to ensure reliable operation and long-term performance.
6.Your Long-Term Manufacturing Partner
Beyond supplying equipment, KINGT is committed to building long-term partnerships through customized solutions, professional technical support, and continuous product innovation—helping customers grow their businesses with confidence.
Global Service & Support
1.Installation & Training
Our engineers provide installation guidance and operator training to ensure your equipment is commissioned efficiently and your team is ready for production.
2.Remote & On-Site Technical Support
Technical assistance is available via WhatsApp, Email, and Video. When required, our engineers can travel to your facility to provide on-site installation, maintenance, troubleshooting, and technical support.
3.Fast Response Service
Our after-sales team responds quickly to technical issues, helping customers minimize downtime and restore production as efficiently as possible.
4.Lifecycle Technical Support
From equipment operation and application optimization to maintenance consultation, we provide continuous technical support throughout your machine's lifecycle.
5.12-Month Warranty
Every KINGT UV flatbed printer includes a 12-month warranty (excluding Printhead and ink supply system, consumable parts are not covered), backed by long-term technical support from our experienced service team.
FAQ
What makes the magnetic levitation linear motor system better than traditional belt drives?
The X/Y magnetic levitation system eliminates friction and wear, providing silent movement, higher speed, and 1 μm encoder accuracy to ensure long-term printing consistency without mechanical backlash.
Can the KGT-2513Hi handle small, detailed items like anime cards or metal badges?
Yes. Powered by FUJIFILM SF600 printheads with a 4pL minimum ink droplet size and optional CCD vision camera positioning, the printer ensures millimeter-precise registration and sharp text on small substrates.
How does the printer prevent white ink settling and printhead clogging?
The machine features an automated sub-ink tank heating circulation system, a white ink circulating stirring function, and printhead internal ink circulation to maintain consistent ink viscosity and continuous flow.
What color management system is supported?
The printer is G7 color management certified and comes bundled with German ColorGATE RIP software for international brand color accuracy and professional spot color management.
What are the power and space requirements for installation?
The unit measures 4,670 × 2,250 × 1,450 mm and weighs 1,650 kg. It requires a standard AC 220V (±10%) 50/60Hz power connection with a maximum power draw of 9,000W (including the 4.4kW vacuum system).
