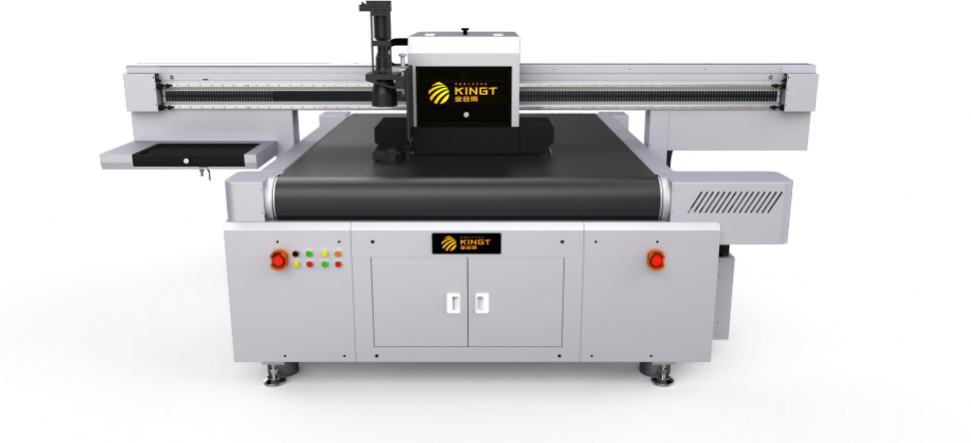

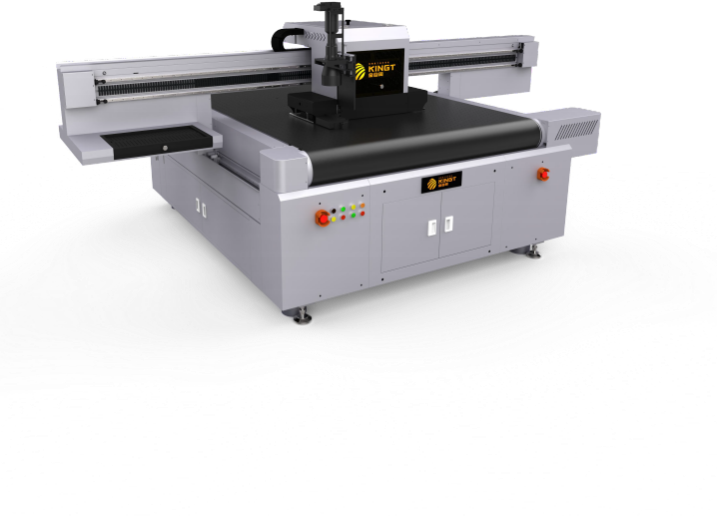

The KGT-1620-H UV Flatbed Printer is an industrial UV printing machine designed for businesses requiring flexible customization, stable production, and high-quality direct-to-object printing solutions.
Developed for printing companies, distributors, importers, manufacturers, and industrial processors, the KGT-1620-H helps customers expand their printing capabilities and provide customized solutions across different industries.
With advanced UV printing technology, CCD visual positioning, and multi-layer printing capability, this industrial UV printer enables businesses to produce customized products for applications including advertising signage, product decoration, packaging customization, brand printing, and industrial surface printing.
Gain Competitive Advantage with KGT-1620-H UV Flatbed Printer
Expand Your Product Range and Business Opportunities
The demand for customized products continues to grow. Traditional printing methods may have limitations when handling different materials, product types, and personalized production requirements.
The KGT-1620-H helps businesses expand beyond conventional printing services by providing flexible UV printing solutions for various applications.
With this UV flatbed printer, customers can develop opportunities in:
Advertising & signage production – creating customized display panels, commercial signs, and promotional materials.
Product decoration & brand customization – adding logos, graphics, and decorative designs to different products.
Packaging customization – providing customized packaging surfaces and brand enhancement solutions.
Industrial product printing – supporting surface printing and identification requirements for industrial applications.
By expanding your printing capability, you can serve more industries, increase order opportunities, and strengthen your market competitiveness.
Deliver High Value-added Printing Solutions
Modern customers require more customized products, faster response, and unique surface effects.
The KGT-1620-H supports:Color printing,White ink printing,Varnish printing.These functions allow businesses to create differentiated products with enhanced visual effects, helping them provide higher-value printing services.
Compared with conventional printing methods, UV printing offers greater flexibility for customized production, short-run orders, and diverse application requirements.
Improve Production Flexibility for Customized Orders
For businesses handling different customer requirements, production flexibility is essential.
The KGT-1620-H combines:High-resolution UV printing,CCD visual positioning technology,Multi-layer printing capability,to support stable and efficient customized production.
It helps businesses:Reduce manual adjustment,Improve printing consistency,Handle different product designs,Maintain reliable production quality
Key Technical Advantages
Triple Linear Motor Drive with 1 μm Linear Encoder
Powered by a triple linear motor drive system and a 1 μm linear encoder, the printer delivers faster response, higher repeat positioning accuracy, and stable motion control for precision industrial printing.
Integrated Conveyor System for Synchronized Feeding & Printing
The built-in conveyor system enables synchronized material feeding and printing, improving production automation and efficiency.
Automation: Reduces manual operation and increases production automation.
Efficiency: Ensures continuous and stable material transport for higher productivity.
Accuracy: Synchronizes feeding and printing for precise material positioning.
Multiple Scan-and-Print Modes
Supports multiple scan-and-print modes to meet different production requirements.
Flatbed Mode – Y-axis stepping for high precision and high production efficiency.
Conveyor Mode – Conveyor stepping for high-speed production where standard positioning accuracy is required.
Scan-Then-Print Mode – Designed for applications requiring maximum positioning accuracy.
Print Width: 1600mm, Unlimited Printing Length
Featuring a 1600 mm printing width with unlimited printing length, the system provides exceptional flexibility for long-format printing applications. Customized printing lengths are available to meet specific production requirements.

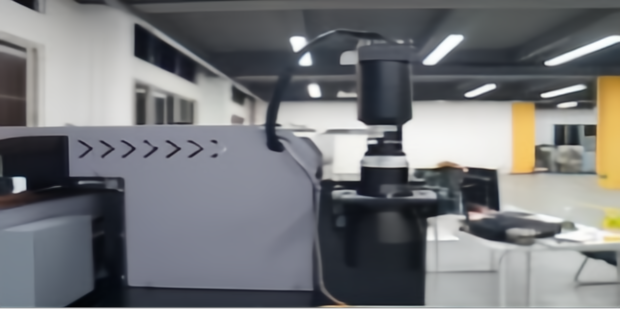

8K Vision Positioning System
Equipped with an 8K industrial vision system and a high-precision coaxial light source, it delivers high-accuracy image acquisition for improved positioning accuracy and supports printing on a wide range of materials. (Up to 1200 dpi)
Integrated Vision Software Platform
KINGT's self-developed software platform integrates the printing software, RIP software, and vision software into one unified system, providing intuitive operation and seamless workflow integration.

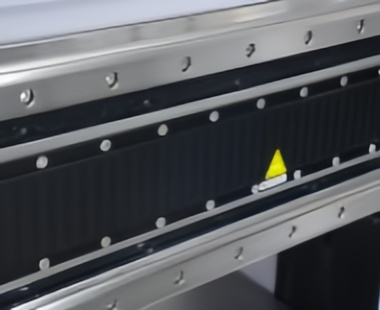

Linear Motor Drive System
The X and Y axes are driven by linear motors and equipped with a 1 μm linear encoder, delivering faster response, higher repeat positioning accuracy, and smooth, stable motion for precision printing.
Multiple Scan-and-Print Modes
Supports multiple production modes to meet different application requirements. Flatbed Mode – Y-axis stepping for high-precision, high-efficiency printing. Conveyor Mode – Conveyor stepping for high-speed production with standard positioning requirements. Scan-Then-Print Mode – Optimized for applications requiring maximum positioning accuracy.

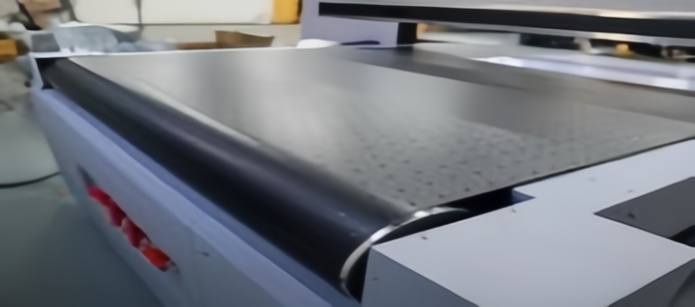

Integrated Conveyor System
The integrated conveyor system improves production efficiency through synchronized material feeding and printing. Automation – Reduces manual handling and increases production automation. Efficiency – Enables continuous and stable material transport. Accuracy – Ensures precise material positioning during printing.

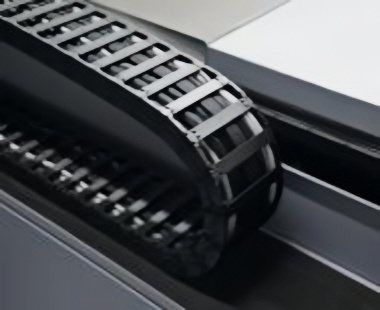

Industrial-Grade Energy Chain
Designed for continuous high-speed operation, the industrial-grade energy chain minimizes cable wear, extends cable service life, and enhances the long-term stability and reliability of the printing system.
| Model | KGT-1620-H |
| Printing size | 600mm*customizable |
| Printhead | RlCOH GEN6 |
| Printing resolution | 726*900/726*1200dpi |
| CCD visual positioning system | Auto detect & positioning, scan & print, 8K camera, coaxial light source |
| Printing height | 0-150mm standard（customizable） |
| X / Y axis system | Magnetic levitation linear motor |
| X / Y axis motor | Linear motor, metal encoder strip (1μm) |
| Lift mode | lntelligent carriage lift + automatic/manual intelligent detection height adjustment |
| Media | Badges, nameplates, cards, acrylic, wood boards, crafts, etc. |
| File format | TlFF(RGB&CMYK)、BMP、PDF、EPS、JPEG, etc. |
| lnk supply system | lntelligent supply/1,000ml/ constant temperature & pressure |
| lnk type | Eco-friendly UV soft inks / hard inks / neutral inks (VOC-free) |
| lnk color | C、M、Y、K、Lc、Lm、W、V(optional) |
| RlP software | ColorGATE (from Germany) |
| Dimensions | 3,650mm x 2,420mm x 1,900mm |
| Power requirements | AC220V(±10%)50/60HZ, Max power: 7,000W (including vacuum power 3,000W) |
| Operating system | Windows 10 ultimate 64-bit |
| Environmental requirements | Temperature: 18-30℃ (64°F ～ 86°F), Relative humidity: 45%-60% |
Why Choose KINGT as Your UV Flatbed Printer Manufacturer
1.Professional Industrial UV Printer Manufacturer Since 2009
KINGT is a professional manufacturer specializing in industrial UV printing equipment. Since 2009, we have integrated R&D, manufacturing, sales, and global service to deliver reliable UV printing solutions for distributors, manufacturers, and printing businesses worldwide.
2.Large-Scale Manufacturing Capability
With a 220,000 m² production base, 400+ employees, and 100+ patents & copyrights—plus an R&D team comprising 25% of our workforce, KINGT has the manufacturing capacity to support both standard equipment production and customized project requirements.
3.Built for Industrial Production
Our UV flatbed printers are engineered for continuous industrial operation, delivering stable performance, high productivity, and consistent print quality for demanding manufacturing environments.
4.Global Supply & Industry Experience
With a strong global footprint, KINGT provides high-performance industrial UV printing equipment to customers in more than 80 countries worldwide.We understand the needs of distributors, OEM partners, manufacturers, and commercial printing companies.
5.Certified Manufacturing Quality
Our manufacturing processes comply with ISO 9001, ISO 14001, and ISO 45001 standards. Every machine is thoroughly inspected and tested before shipment to ensure reliable operation and long-term performance.
6.Your Long-Term Manufacturing Partner
Beyond supplying equipment, KINGT is committed to building long-term partnerships through customized solutions, professional technical support, and continuous product innovation—helping customers grow their businesses with confidence.
Global Service & Support
1.Installation & Training
Our engineers provide installation guidance and operator training to ensure your equipment is commissioned efficiently and your team is ready for production.
2.Remote & On-Site Technical Support
Technical assistance is available via WhatsApp, Email, and Video. When required, our engineers can travel to your facility to provide on-site installation, maintenance, troubleshooting, and technical support.
3.Fast Response Service
Our after-sales team responds quickly to technical issues, helping customers minimize downtime and restore production as efficiently as possible.
4.Lifecycle Technical Support
From equipment operation and application optimization to maintenance consultation, we provide continuous technical support throughout your machine's lifecycle.
5.12-Month Warranty
Every KINGT UV flatbed printer includes a 12-month warranty (excluding Printhead and ink supply system, consumable parts are not covered), backed by long-term technical support from our experienced service team.
FAQ
1.How does this printer increase throughput and lower labor costs?
Zero Pre-Scan Downtime: Thanks to real-time scan-and-print technology, the printer scans and prints simultaneously. There is no need for a separate scanning cycle.
Non-Stop Automation: The integrated conveyor belt system allows continuous material feeding, allowing a single operator to manage high-volume production runs effortlessly.
2.How does it help reduce scrap rates on high-value or irregular parts?
High Elevation Tolerance: Reliably prints products with height variances up to 10 mm without ink overspray or sharpness loss.
0.1 mm Placement Accuracy: Precise vision alignment ensures accurate ink placement on irregular or contoured workpieces, preventing costly misprints on high-margin items.
3.How does it help us win high-end orders?
Premium Finishes: Supports White and Varnish layers in a single pass to create eye-catching 3D embossing, tactile textures, and high-gloss spot finishes.
Flawless Brand Color Matching: Bundled with industry-standard German ColorGATE RIP software to ensure strict compliance with international corporate brand colors.
4.Can it handle oversized or custom-length print jobs?
Unlimited Length Flexibility: Features a 1600 mm (63 in) print width with continuous transport length capability, allowing you to accept non-standard or oversized client orders without investing in extra specialized equipment.
5.Will it fit our existing factory infrastructure?
Global Power Compatibility: Runs on standard industrial AC 220V (50/60Hz) with an average operating power of only ~1800W, making it plug-and-play for international factory grids without costly power upgrades.
Compact Industrial Footprint: Measures 3800 × 2100 × 1600 mm, designed to maximize production yield per square meter of floor space.
