DESCRIPTIONS

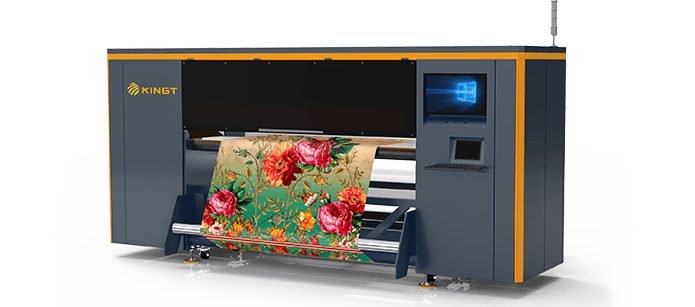

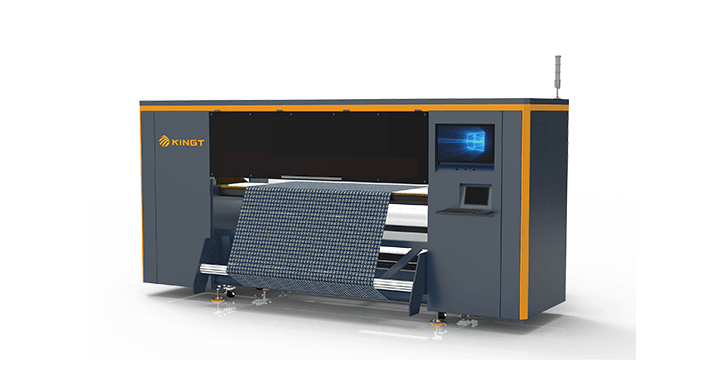

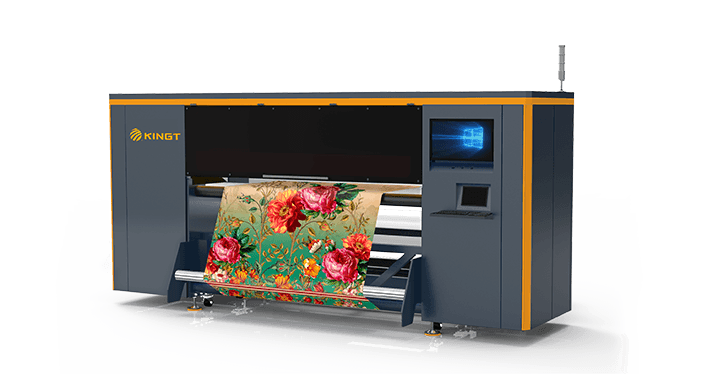

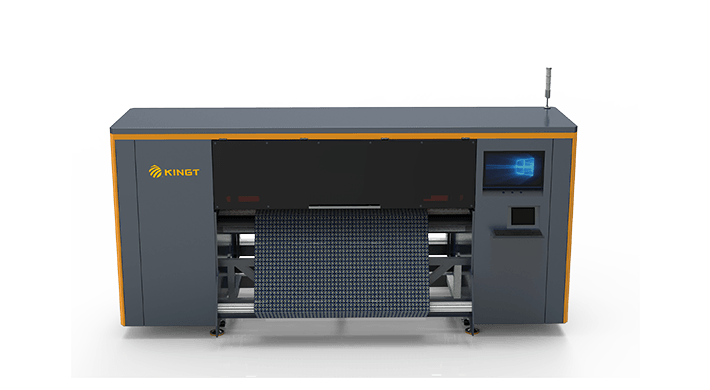

KGT-Jet

Hi-speed Hi-resolution Digital Textile Printer


Basic Configuration

Hi-precision Epson S3200 print head (4 or 8 PH)

1900mm wide media format

Minimun 3.5pl variable ink dot print heads

Auto suck ink, ink suck protect system

Pause of paper out and alarm for shorting of ink


Features

Automatic Print Head cleaning and maintenance systems

Pause function for Missing material& ink

linear motor(maglev guiderailers) is applied in X axis to ensure high resolution,  stability, and fast carriage moving speed

Linear motor impriving high productivity up to 600sqm/hr

State-of-art industrial design concept, strong body

Fully sealed drying system and mute fans reduce noise a lot

Supported more extensible Function


Print Parameters

High quality model: 200m2/hr

High production model: 400m2/hr

High speed model: 600m2/hr


Media & Ink

Roll to Roll Media, Print Width: 1.9M

Apply to Sublimation Paper

4colors or 6 colors, apply for dye sublimation ink

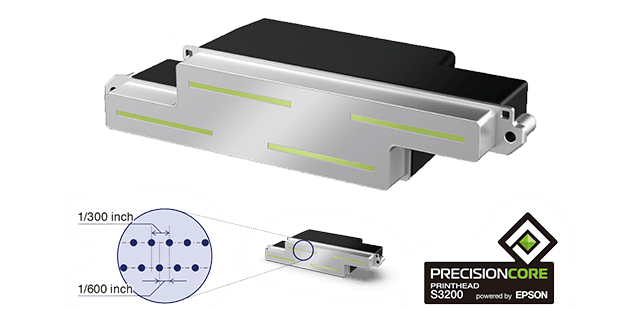

Hi-precision Epson S3200 printheads

Epson S3200 Print Head

4 or 8 pcs original Epson S3200 printheads

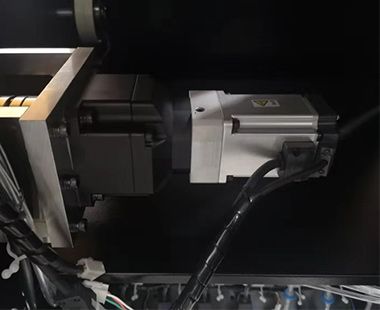

High-precision servo motor

High-precision Servo Motor

Ensure accurate mechanical transmission and durability

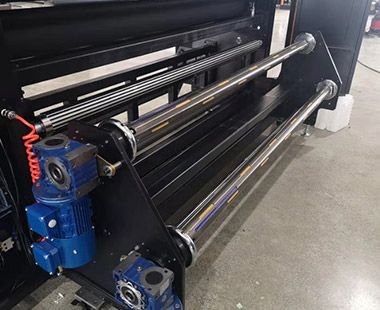

Strengthened Feed-in System

Strengthened Feed-in System

Strengthened feed-in system support 3000~10000m paper roller

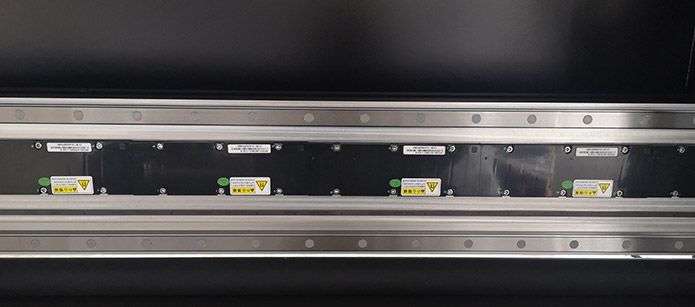

Double guide-beam construction

Double Guide-beam Construction

linear motor(maglev guiderailers) is applied in X axis to ensure high resolution, stability, and fast carriage moving speed

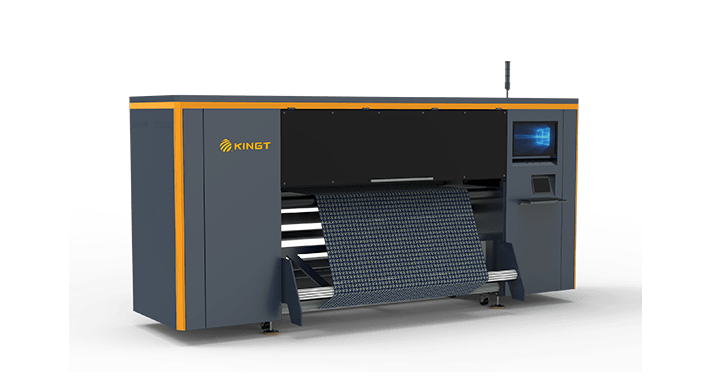

 industrial design concept

Industrial Design Concept

State-of-the-art industrial design concept with a robust body

SPECIFICATIONS
ModelKGT-JET
Printhead4 or 8 pcs original Epson S3200 Printheads

Ink Type

4 colors or 6 colors, dye-sublimation ink

Ink Supply System

Automatic Ink Supply

Printing Resolution635x900 DPI / 635x1200 DPI

Materia

Roll-to-roll material, the widest width 190cm, Heat transfer paper (35g - 70g)

Ink Cartridge Size5L/Bottle
RIP Software

Maintop, Photoprint, Texprint, Caldera

File FormatPDF/PS/EPS/TIFF/AI
Printer Dimesions (X*Y*Z)

3700 x 1700 x 1900 mm

Wooden Box Dimensions (X*Y*Z)

4100 x 2000 x 2000 mm

Net Weight1800 kgs
Power RequirementImput voltage: 220 ~ 240V, single-phase, 50/60HZ, 6.5KW
Operating Conditions

Temperature: 20~30°C; Relative Humidity: 45%~75%;

AFTER-SALES SERVICE & FAQ

AFTER-SALES SERVICE COMMITMENT


Troubles hooting

Service promised, after-sales engineers to troubleshootingfaults and resume normal production at the fastest time.

Service tracking

Regularly follow up customers, get to know about theequipment usage, listen to customer's advise and givetechnical guidance while keeping records.

Service consulting

Professional engineer after-sales service team; Full-time online service with diversified methods


HOW LONG WILLTHE TOTAL CARE WARRANTY LAST?

Provide one year free warranty for equipment accordingto the standard (except printheads and consumables). More details, please ask our after-sales for help.


HOW TO OBTAIN TOTAL CARE WARRANTY SERVICE?

Please contact the Authorized KINGT Distributor/Dealer the product was purchased from for after-sale service. If buy from kingt factory, we have our own after-sales service team.


FAQ


What is the Application Range of UV Printer?

Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.


How many mobile phone cases can you print a day?

Take KGT-LE-2513 for example, we can print Iphone case about 5000 units per day.


How many years can a machine last?

About 8-10 years


How many machines will you sell earch year?

In the year of 2016, we sold 880 units, and we sold 1800 units annually. we are the Top 3 Ricoh printhead manufacturer in China.


How about the printing cost?

1L ink can print 80 M2, it is about 1 USD per square meter printing.


How many people in your company?

The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.


What is your company advantage?

1. Accumulating nearly a decade of experiences in UV printing industry, Kingt provides you professional solutions in UV printers and help you save time and effort getting into the UV market.

2. Kingt is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.

3. The top 3 printheads customer for Ricoh shows that Kingt takes up a significant market share of Ricoh printers in the market.

4. Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.

5. The sales volume by 500 millions in 2023 shows that you will be working with a fast growing company and expand the potential business together.
