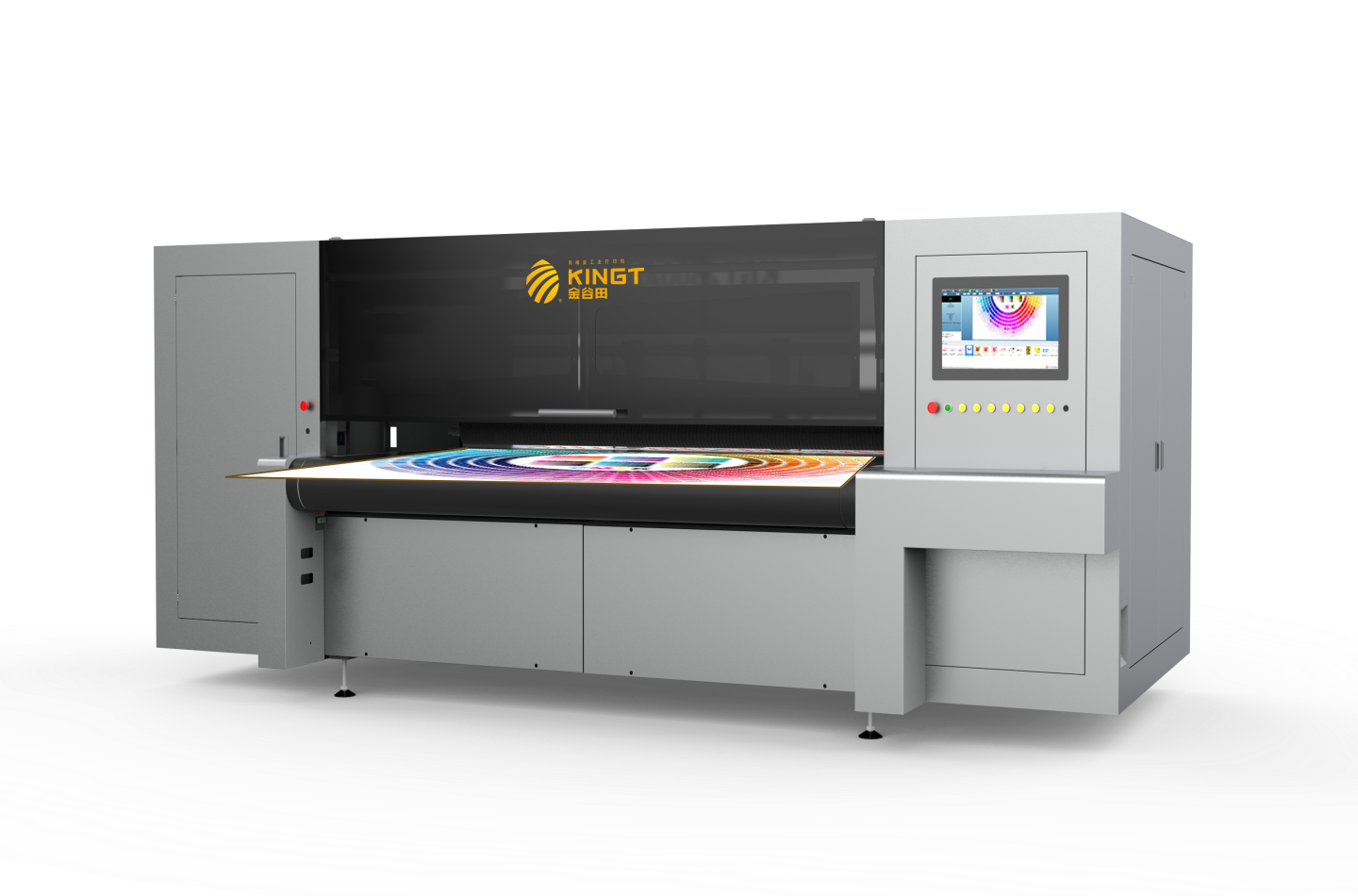

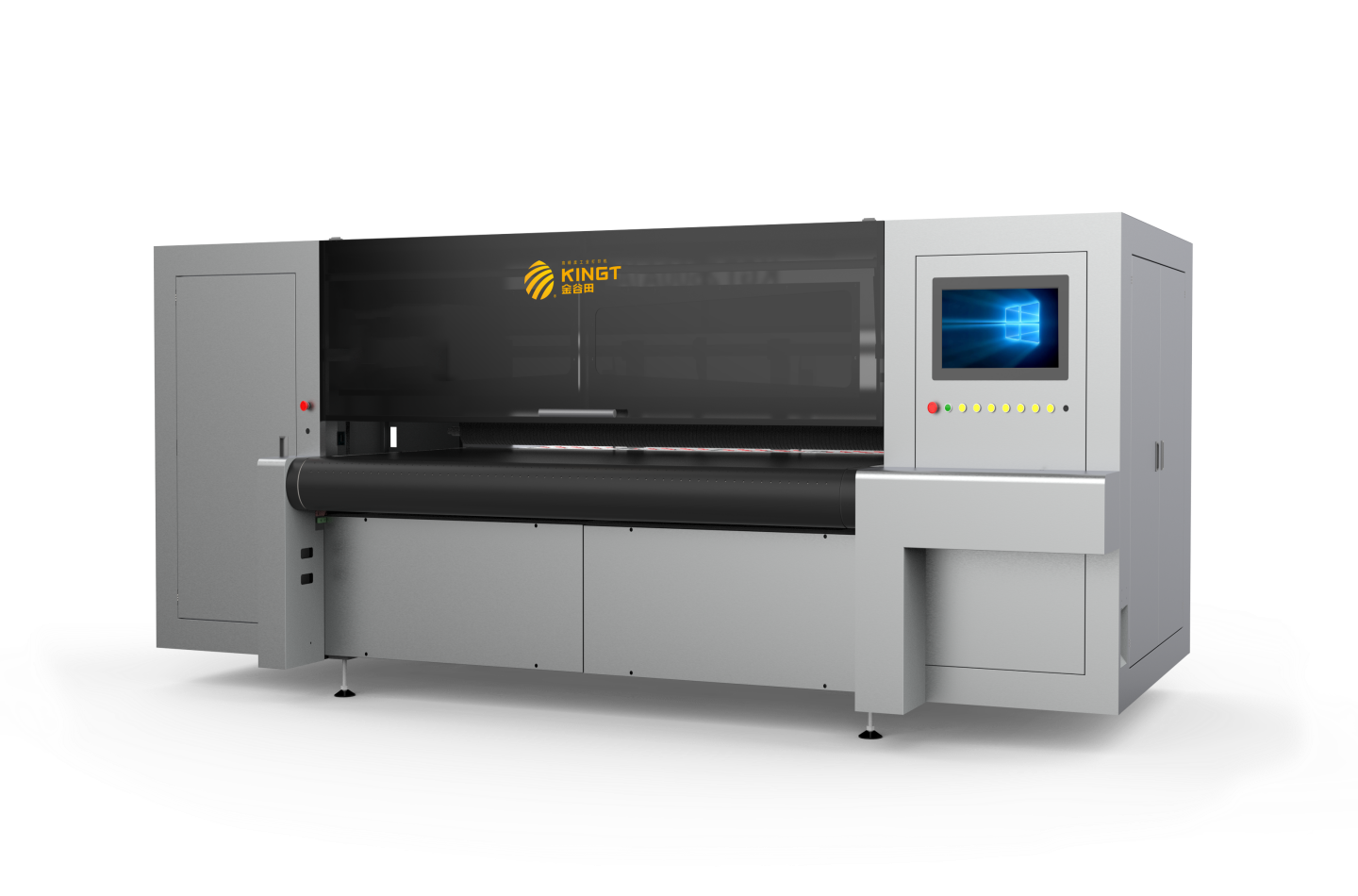

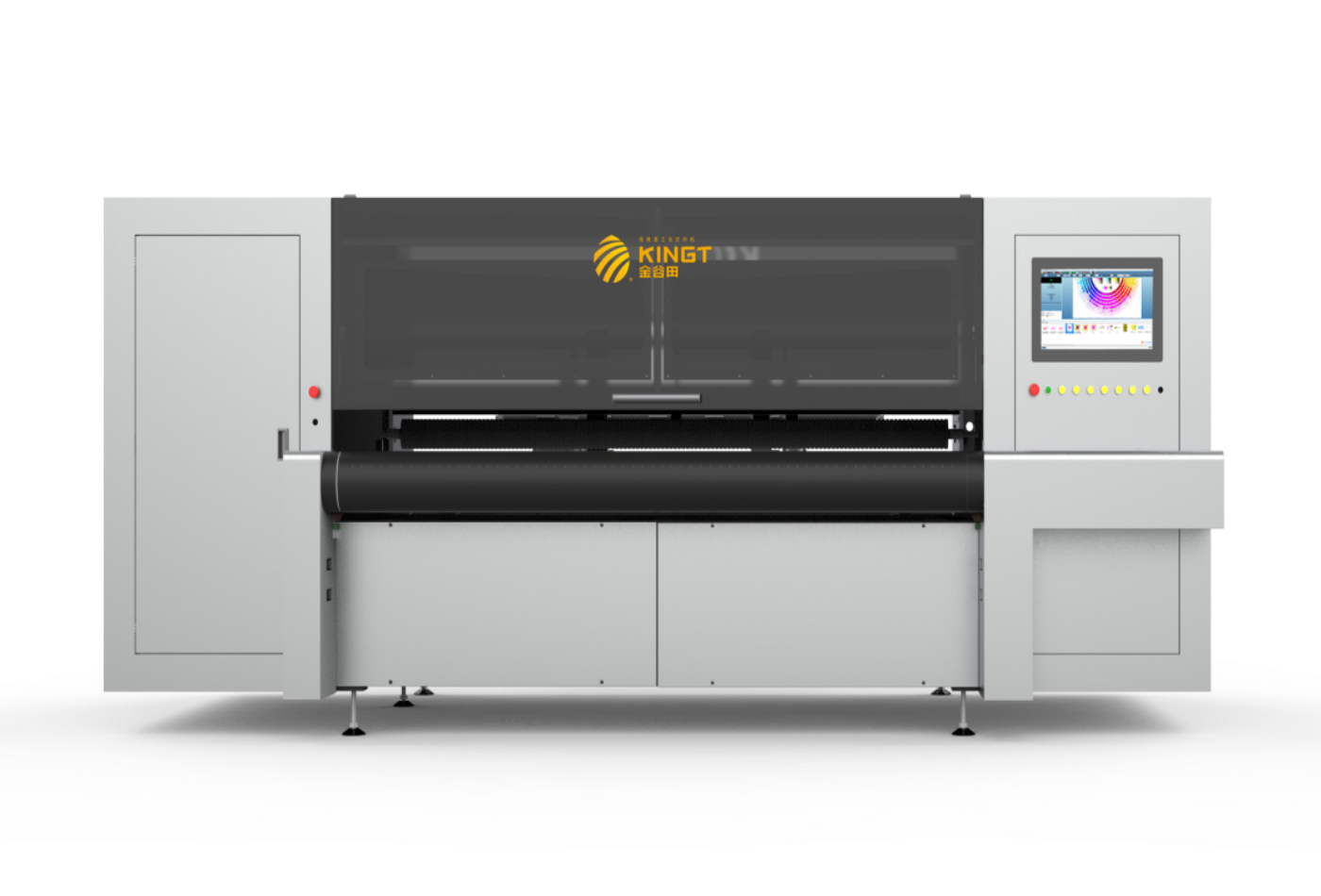

The KGT-MS250 is a 2-in-1 digital corrugated printing solution designed for businesses requiring flexible customization, high-speed production, and precision printing capabilities. Combining precision scanning printing with high-speed single-pass technology, this industrial printer enables packaging manufacturers to efficiently handle both short-run customized orders and high-volume production.
With advanced motion systems, laser sensing, and dual-mode functionality, the KGT-MS250 empowers businesses to expand their corrugated packaging offerings. It is engineered for low labor requirements, print-on-demand flexibility, and high-resolution output on various paperboard substrates.
Gain Competitive Advantage with KGT-MS250 Digital Corrugated Printer Dual-Mode Production Versatility
The demand for personalized packaging continues to grow, requiring equipment that handles diverse order sizes efficiently. The KGT-MS250 integrates Multi-Pass Scanning and Single-Pass modes into one unit, optimizing floor space, reducing equipment investment, and balancing print quality with production speed.
With this 2-in-1 digital printer, packaging producers can develop opportunities in:
l High-resolution short-run packaging – creating detailed graphics and multi-pass precision prints.
l High-volume corrugated box production – utilizing single-pass mode for rapid output up to 50 m/min.
l Variable data & traceability printing – supporting continuous variable QR codes and plain text codes (optional).
l Personalized & on-demand customization – fulfilling short-turnaround jobs with no printing plates required.
Deliver High Value-added Printing Solutions
Modern corrugated packaging requires fast turnarounds, crisp resolution, and reduced inventory pressure.
The KGT-MS250 supports resolutions up to 1200 dpi, multi-pass precision mode, and single-pass high-speed mode. These functions allow packaging providers to eliminate plate costs and lower overall operating expenses while delivering premium print quality.
Compared with traditional flexo printing, digital printing offers greater flexibility for short runs, zero quantity limitations, and rapid response to market demands.
Improve Production Flexibility for Customized Orders
For packaging plants handling diverse customer requirements, production stability and ease of operation are essential.
The KGT-MS250 combines: 1-person operation, auto lead edge feeding, job queue management with auto-switching (JQM function), and automated Y-axis deviation correction.
It helps businesses: Reduce manual operation, Eliminate plate-making setup time, Improve printing consistency, Maintain high productivity up to 1,400 m²/h in scanning draft mode or 2,000 m²/h single-pass capability.
Key Technical Advantages
Dual-Mode Production Capability (Scanning & Single-Pass)
Integrates Multi-Pass Scanning mode for detailed artwork with High-Speed Single-Pass mode in a single machine. This 2-in-1 architecture reduces equipment investment, saves floor space, and lowers operational costs.
High-Throughput Printing Up to 1,400 ㎡/h or 50 m/min
Delivers production speeds up to 1,400㎡/h in 1PASS scanning draft mode (700㎡/h in 2PASS mode) and up to 50 m/min in Single-Pass mode.
Industrial Epson i3200-A1 Printhead Configuration
Features a single-row 16-printhead array utilizing Epson i3200-A1 printheads with 4-color CMYK water-based dye ink. Supports printing resolutions up to 363*1,200 dpi for sharp detail.
Automated Material Handling & Wide Media Specifications
Features automatic leading-edge feeding supporting media widths up to 2,500 mm, auto feeding length up to 1,450 mm, and board thicknesses from 1.5 to 20 mm.
Job Queue Management System (JQM Function)
Includes an intelligent Job Queue Management System with auto-switching functionality, allowing seamless transitions between queued printing jobs without manual downtime.

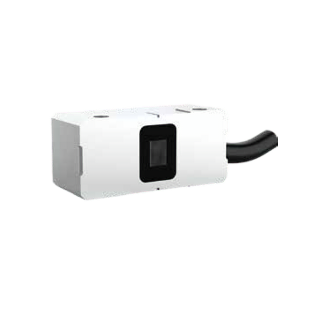

High-Precision Laser Sensor
High-frequency laser ranging sensor. The ranging module has passed rigorous temperature, ambient light and linear compensation tests, ensuring accurate distance information in various operating environments.

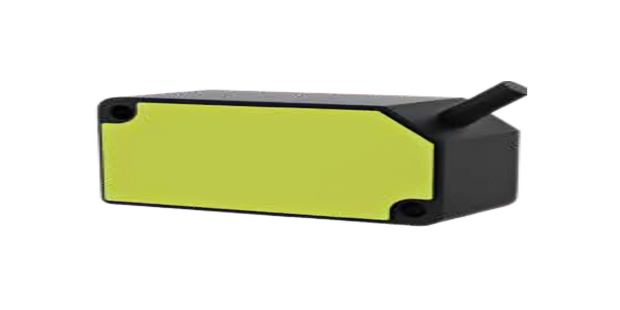

High-Precision Linear Encoder Readhead
Features a large detection range, high detection accuracy and fast response speed. Itis suitable for various harsh and complex environments,with strong anti-interference performance,excellent stability and long service life.

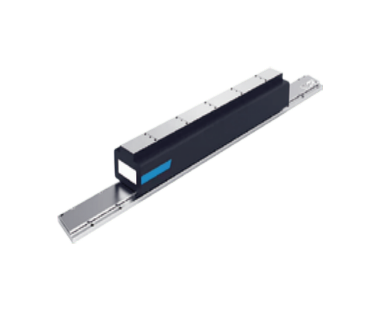

High-Precision X-Axis Drive Structure
Delivers optimal control for X-axis movement,ensuring precise mechanical transmission and long-lasting durability.

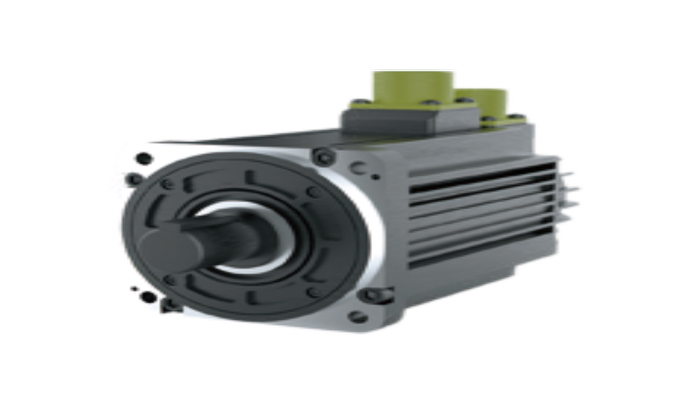

High-Precision Y-Axis Servo Motor
Enables automatic deviation correction for Y-axis movement. When the gantry movement deviates,it automatically corrects the printing starting points on both sides.
| Machine Model | KGT-MS250 | |
| Printing Mode | Scanning Mode | Single Pass Mode |
| Printing Method | 1PASS or Multi-PASS | High-Speed Single Pass |
| Machine Productivity （productioncapacity dependsontheprinting pattern & quality requirements) | 1PASS 1,400 ㎡/h (Draft Mode) 2PASS 700 ㎡/h | Max 50m/min |
| Printing Resolution | 363*600 dpi,363*1,200 dpi | 363*600dpi |
| Print Width | 2500mm | 530mm |
| Printhead Configuration | Single row 16H, 4 Color (C/M/Y/K), Epson I3200-A1 | |
| Applicable Substrates | Yellow cardboard, white cardboard, corrugated cardboard, etc. | |
| Ink Type | Water-Based Dye Ink | |
| Media Feeding Method | Leading Edge Feeding | |
| Media Specifications | Max.Width: 2,500mm, Auto Feeding Length: 1,450mm, Thickness: 1.5-20mm | |
| RIP Software | PrintFactory(Netherlands) | |
| Input FileFormats | PDF, JPEG, TIFF, AI, etc. | |
| Board Loading/Unloading Method | Stacker (optional)+Auto lead edge feeding | |
| Traceability Code Printing （optional) | Supports printing continuous variable QR codes, plain text codes, etc. | |
| Motion System | Linear Motor, High-Precision Servo System | |
| Job Queue Management | Job Queue Management System with Auto-Switching (JQM Function) | |
| Installation Space | 7,100 mm (L)*6,800 mm (W)*2,500 mm (H) | |
| Power Supply & Consumption | 3-Phase 380V, 50Hz, Max.Power:13.5kW | |
| Air Supply Requirements | Pressure:>6 kg/cm², Flow Rate:> 34 liters/min | |
| Environmental Requirements | Relative Humidity: 55%-65%; Ambient Temperature: 22°C-30°C(71.6°F-86°F) | |
| Printer Dimensions | 5,000 mm (L)*3,500 mm (W) *2,000 mm (H) | |
| Net Weight | 3,800 kg | |
